Description

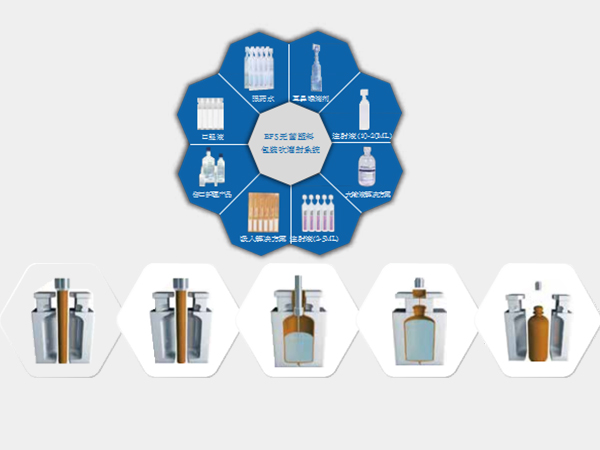

The biggest advantage of Blow&Fill&Seal (BFS) technology is preventing external contamination, such as human interfer- ence, environmental contamination and material contamina- tion. Forming, filling and sealing containers in a continuous automated system, BFS will be the development trend in the field of bacteria free production. It is primarily used for liquid pharmaceutical applications, like ophthalmic&respiratory ampoules, saline or glucose solution bottles, etc.
Main technical parameters
| Model | Unit | JWZ-BFS-03-145S | JWZ-BFS-04-110S | JWZ-BFS-06-080S | JWZ-BFS-08-062S |
| Product volume | ml | 0.4-25-10 10-20 | 0.4-11-35-20 | 500 1000 | 100 250 500 |
| Die head Cavity | 3 3 3 | 4 4 4 | 6 6 | 8 8 8 | |
| Center distance | mm | 145 145 145 | 110 110 110 | 80 80 | 62 62 62 |
| Mold cavity | 3×(5+5) 3×7 3×6 | 4×104×84×5 | 6 6 | 8 8 8 | |
| Total cavity | 30 21 18 | 40 32 20 | 6 6 | 8 8 8 | |
| Cycle time | second | 12 12 12 | 12 12 12 | 18.5 20 | 14.5 16 18.5 |
| Output | per hour | 9000 6300 4500 | 9000 6300 4500 | 1150 1080 | 1950 1800 1550 |
